Biovis Plant Science Modules ( PSM ) – Expert Vision Labs Pvt. Ltd.

“ Rapid, Accurate and Versatile system for Area Measurement of Large or Small Leaves ”

The system is available with the Motorized Conveyor, using which we can easily and quickly scan and measure many leaves. The Conveyor unit is capable of handling any type, size or shape of Leaf Specimens.
Using this module we can perform area measurements on different sections of a Plant Leaf.
Motorized conveyor Model for batch feeding and analysis of large numbers of leaves rapidly.
Capture images of illuminated leaf samples using a camera.
Automated calculation of Leaf Areas. Easily Isolate Various Leaf regions based on their color.

“ A truly Unique, Compact and Portable solution for Fast, Accurate and Non-Destructive estimation of Leaf area in the field ”

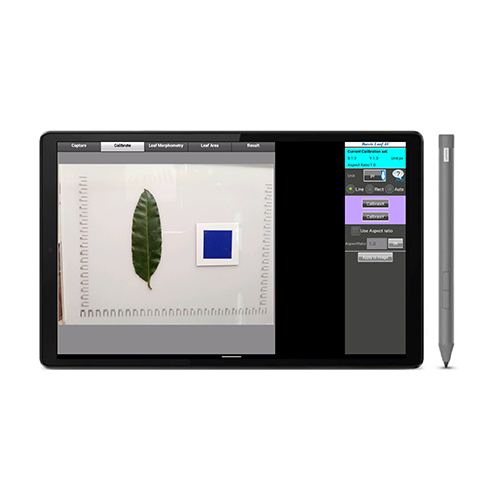

Biovis PSM - Leaf Av is Portable system for measurements of plant leaves without detaching the leaf from the plant. The compact and portable system can perform on field data collection without the need for transporting samples back to the lab. Researchers are thus able to perform on-site, non-destructive measurements on leaves of living plants. Hence studies or experiments can be conducted throughout the life cycle of the leaf.
Biovis PSM - Leaf Av also has an add-on module for measuring ratios of damaged or diseased areas in the leaf. All images of leaves and measured data can be transferred to a PC for further processing if desired.

“ A truly Unique, Compact and Portable solution for Fast, Accurate and Non-Destructive estimation of Leaf area in the field ”

Biovis PSM - Leaf Av is Portable system for measurements of plant leaves without detaching the leaf from the plant. The compact and portable system can perform on field data collection without the need for transporting samples back to the lab. Researchers are thus able to perform on-site, non-destructive measurements on leaves of living plants. Hence studies or experiments can be conducted throughout the life cycle of the leaf.
Biovis PSM - Leaf Av also has an add-on module for measuring ratios of damaged or diseased areas in the leaf. All images of leaves and measured data can be transferred to a PC for further processing if desired.

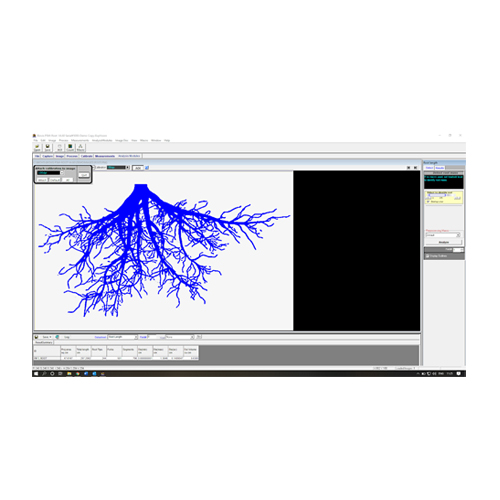

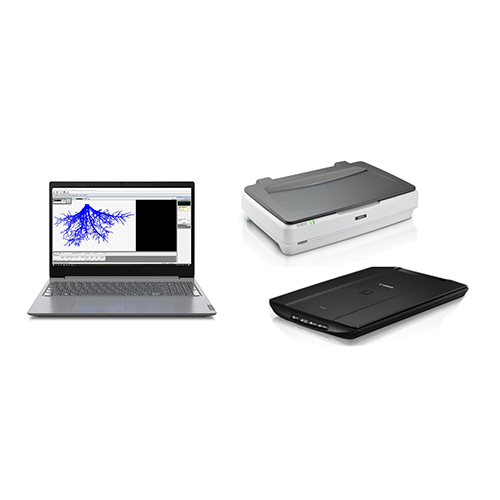

Biovis PSM – R2000 is an image analysis system specifically designed for use in plant science applications to perform rapid and accurate analysis of roots.
The system consists of an Optical scanner as the Image acquisition device and a root analysis software. The software will then automatically analyse the Image to quantify the root morphology.
Root analysis system performs automatic measurements for root length estimation, root diameters, branches, tips, and forks etc.

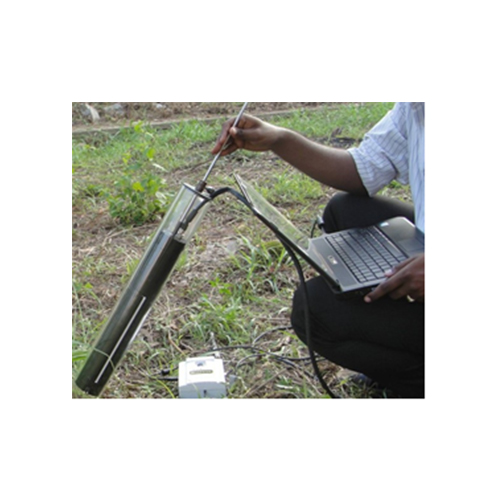

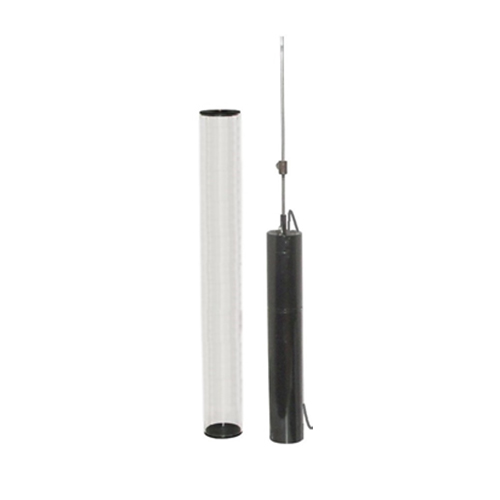

Biovis PSM — R5000 is a portable field level root imaging system designed to scan living roots of a plant sample from inside the soil.
This setup allows users to perform repeatable non- destructive observations of root samples and thus help in studying in-situ root development.
The unique system makes it possible for researchers to observe and quantify root growth activity over several seasons and assist in understanding plant behavior and growing patterns.

Biovis PSM — R5000 is a portable field level root imaging system designed to scan living roots of a plant sample from inside the soil.
This setup allows users to perform repeatable non- destructive observations of root samples and thus help in studying in-situ root development.
The unique system makes it possible for researchers to observe and quantify root growth activity over several seasons and assist in understanding plant behavior and growing patterns.

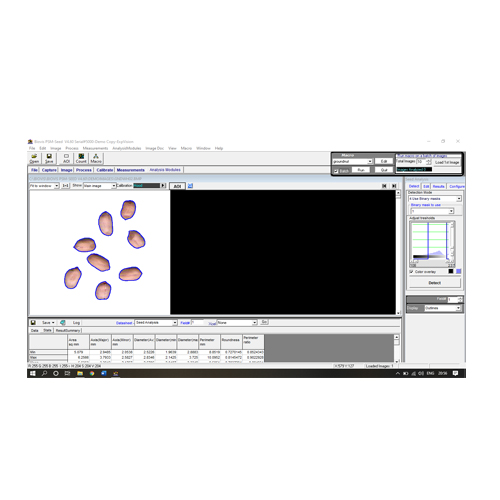

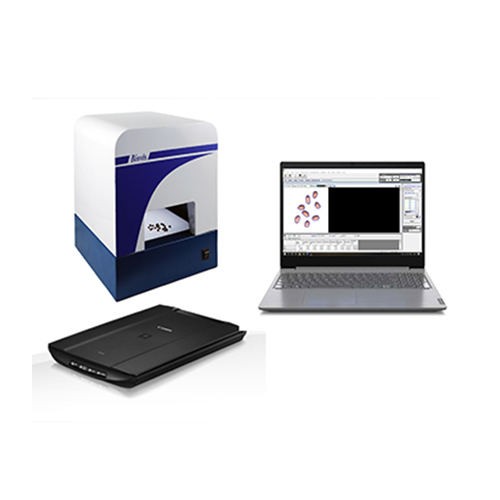

Biovis PSM — S2000 is a digital image analysis system designed to rapidly and accurately analyze samples of grains & seeds to determine its morphometric characteristics. It can be used to analyze different forms of seeds and grains such as Rice, Wheat, Barley, Maize, Pulses, etc.
The system can automatically count the detected seeds from the sample and then measure parameters such as size, shape, shape factors, etc. The software provides over 50 different types of measurements which can be selected by the user.
Measurements like – area, perimeter, roundness, aspect ratio, major and minor axis length, etc. can be performed which can specify important characteristics about the seeds. Comparison of these measurement parameters among different grain or seed samples can give relevant information for variety identification.

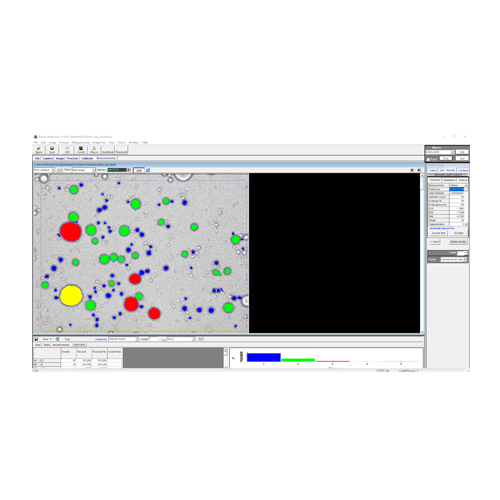

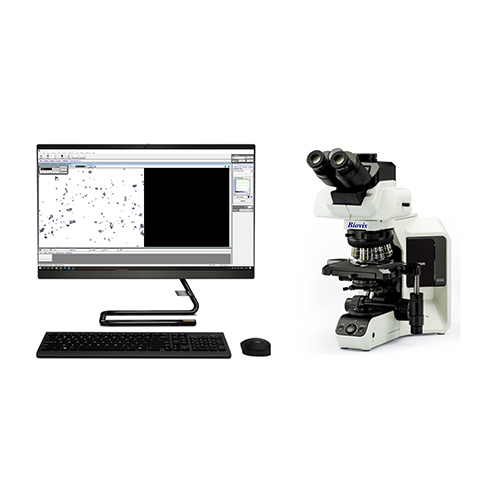

Biovis Spray Droplet Analysis System is an automated imaging solution which is used in accessing the uniformity and efficiency of the sprays and the spray delivery systems. The spray droplet spectrum image is captured by the microscope and camera, and then analyzed by the software to provide complete information on the individual and cumulative spray droplets.

Biovis Spray Droplet Analysis System is an automated imaging solution which is used in accessing the uniformity and efficiency of the sprays and the spray delivery systems. The spray droplet spectrum image is captured by the microscope and camera, and then analyzed by the software to provide complete information on the individual and cumulative spray droplets.
With a single click obtain total particle counts along with detailed size and shape information, VMD and NMD measurements, and their ratio can be derived.
